Leoni Special Cables GmbH Business Unit Automation & Drives

CC-Link power limited tray cable L45467-Y19-W5

CC-Link power limited tray and communication cable
LEONI part number: L45467-Y19-W5
Compliant with CC-Link specification 1.10, capable of 10 Mbps operation, 3x20 AWG + 2x18 AWG

Feature

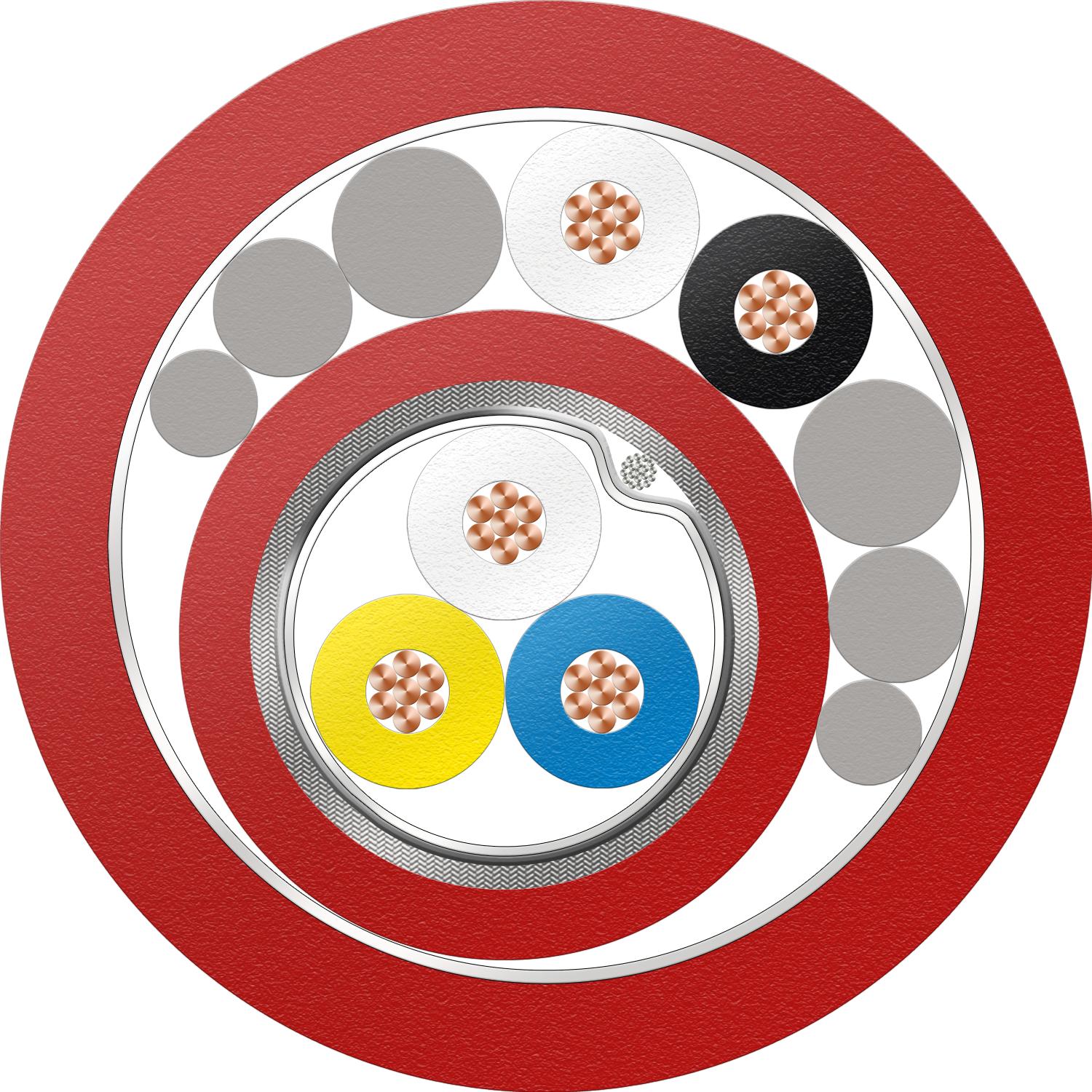

  • Wire LIY 0.9/2.3 stranded tinned copper wire 7 × 0.4 mm, insulation of PVC Ø 2.3 mm, wire 02YS stranded bare copper wire 7 × 0.32 mm, insulation of foamed PE with skin Ø 2.2 mm, triple 02YS(ST)CY 3 wires, alulaminate foil overlapped, stranded tinned copper drain wire 0.38 mm2 , shield braiding of tinned copper wires Ø 0.13 mm, outer jacket red PVC.
Station type
Number of stations occupied
CC-Link version
External dimensions Outer diameter: 12.8 ± 0.3 mm (0.504 in ± 0.012 in)
Mass 191 kg/km (128 lb/1000 ft)
Standard Price

Contact

[Japan]
  • Company name : LEONI Wire & Cable Solutions Japan K.K.
  • Address : Yashirogaoka 2-1118 Meito-ku, Nagoya Aichiken 465-0051, Japan
  • Mail : automation-drives@leoni.com
  • [China]
  • Company name : LEONI Cable(China)Co., Ltd
  • Address : Room 605, Aetna Mansion, No.107 Zunyi Road, Changning Area, Shanghai, 200051 China
  • Mail : automation-drives@leoni.com
  • [Korea]
  • Company name : LEONI Wire & Cable Solutions Japan K.K.
  • Address : Yashirogaoka 2-1118 Meito-ku, Nagoya Aichiken 465-0051, Japan
  • Mail : automation-drives@leoni.com
  • [Taiwan]
  • Company name : LEONI Wire & Cable Solutions Japan K.K.
  • Address : Yashirogaoka 2-1118 Meito-ku, Nagoya Aichiken 465-0051, Japan
  • Mail : automation-drives@leoni.com
  • [Europe]
  • Company name : LEONI Special Cables GmbH
  • Address : Eschstraße 1, 26169 Friesoythe, Germany
  • Mail : automation-drives@leoni.com
  • [US]
  • 公司名称 : LEONI Engineering Products & Services, Inc.
  • 地址 : 100 Kay Industrial Drive, Lake Orion, Michigan 48359-1831, United States
  • e-mail : automation-drives@leoni.com
  • [India]
  • Company name : LEONI Special Cables GmbH
  • Address : Eschstraße 1, 26169 Friesoythe, Germany
  • Mail : automation-drives@leoni.com
  • URL: http://www.leoni.com

    Product details: www.leoni-factory-automation.com/en/products-and-services/bus-cables/product-finder/details/l45467-y19-w5/
