CC-Link partner product information
CC-Link IE Field｜Peripheral devices｜Cables・connectors
BizLink Special Cables Germany GmbH
CC-Link IE Field TSN Cat 6A Cable L45467-J415-C45-C1
CC-Link IE Field TSN Industrial Ethernet communication cable
BizLink part number: L45467-J415-C45-C1
Compliant with CC-Link IE Field and CC-Link TSN specification, up to 10 GBit/s transmission rate
Specifications: UL-Style 20276 (80 °C/30 V)
Feature

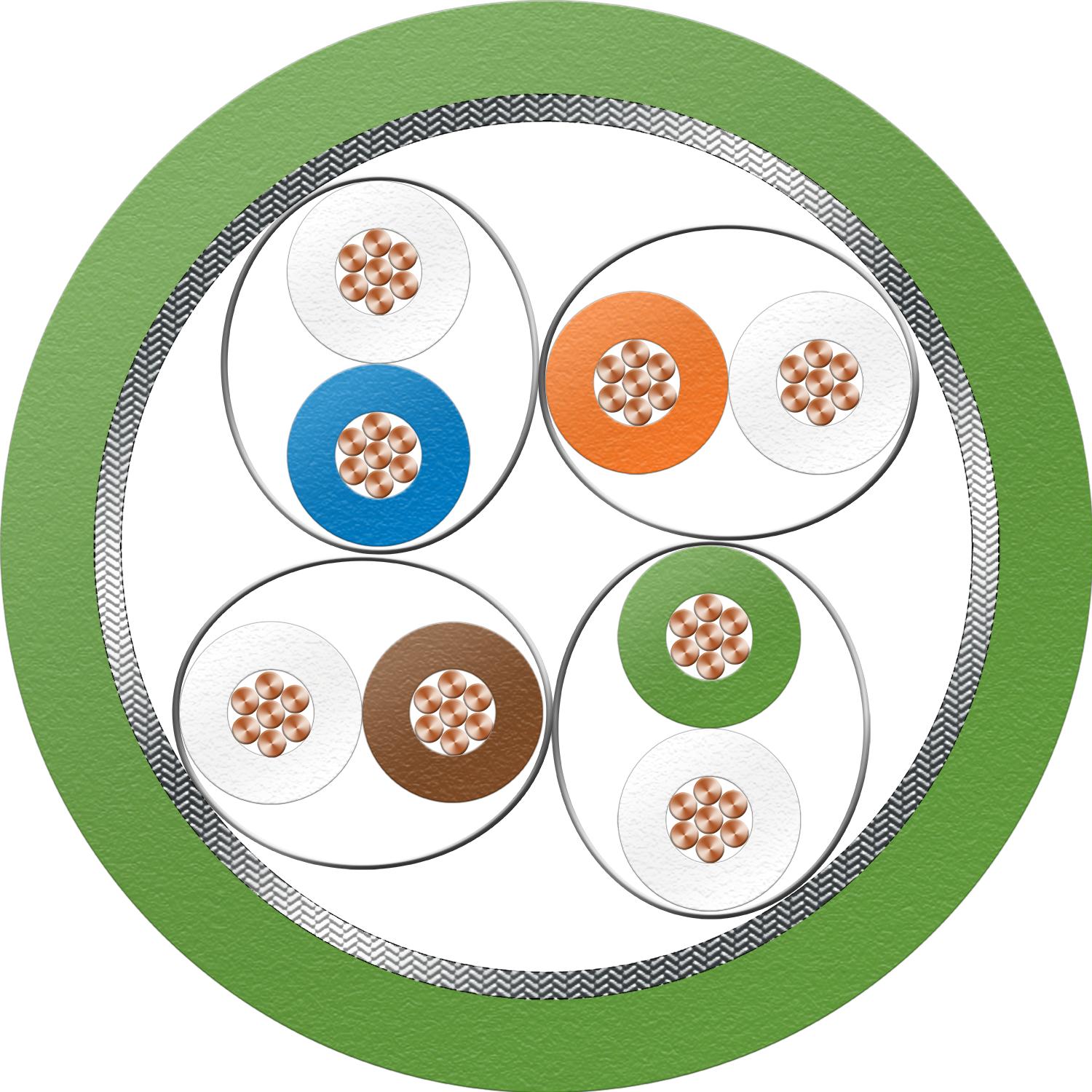

- The new CC-Link IE Field TSN Cat 6A cable is the perfect solution for 10 GBit/s transmissions in the industrial field. Due to the double shielding construction, the cable has high anti-electromagnetic disturbance performance.
For flexible applications
Flame retardant
RoHS compliant
UL-Style 20276
CC-Link IE Field certified
CC-Link IE TSN certified
| Type of station or product category | Twisted pair cable |
|---|---|
| Maximum transmission distance | |
| Outside diameter/External dimensions | |
| Mass | |
| Standard Price |
Contact
- [China]
-
- Company name : BizLink Special Cables (Changzhou) Co., Ltd.
- Address : No.21, Taihu West Road, Xinbei District Changzhou, Jiangsu 213000 China
- [Europe]
-
- Company name : BizLink Special Cables Germany GmbH
- Address : Eschstraße 1, 26169 Friesoythe, Germany
- Mail : automation-drives@leoni.com
- [US]
-
- Company name : BizLink Robotic Solutions USA, Inc.
- Address : 100 Kay Industrial Drive Lake Orion, MI 48359 USA
