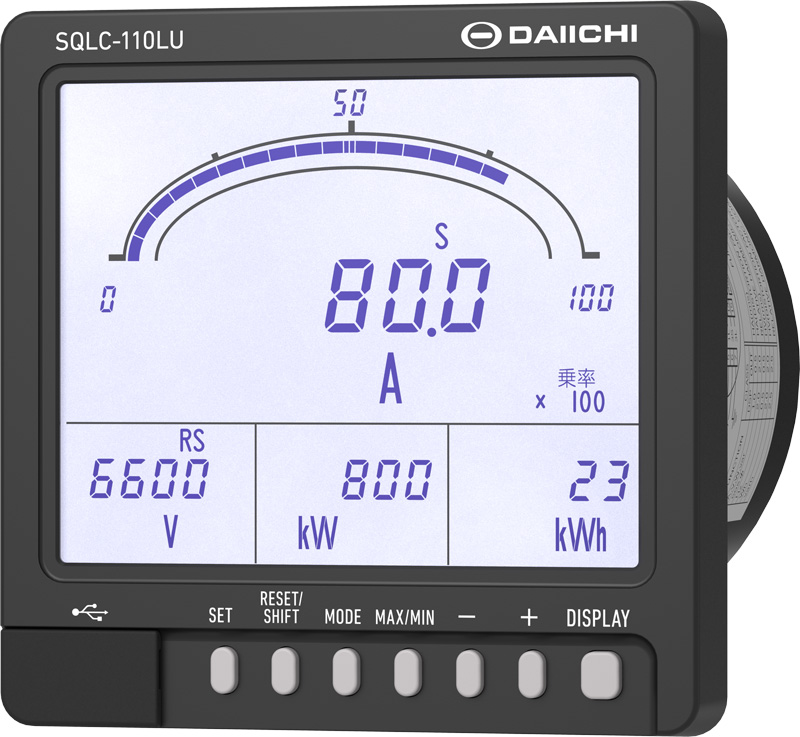

Power Line Super Multi Meter　SQLC-110LU

Multifunctional top-of-the-line model of the series.
Capable of measuring electrical quantities, harmonics, and leakage current.
Setting values ​​can be written and read via USB connection to a PC (dedicated software).

Feature

  • Measurement of electrical quantities, harmonics, and leakage current (Io, Ior) has been consolidated into a 110mm square meter.
    The input specifications are compatible with 3-phase 3-wire, single-phase 3-wire, and single-phase 2-wire, and are also compatible with 110V and 220V, allowing for easy product selection.
  • Since 440V can be directly connected to the input, a transformer is not required, which contributes to improved measurement accuracy, cost reduction, and space saving.
  • The PC setting software allows you to write and read the settings of the SQLC-110LU.
    This improves workability by allowing you to check settings on-site and share setting files.
    The highly reliable and versatile USB Type-C is used to connect to a PC.
  • It inherits the same operability and visibility as the SQLC-110L, which realizes simultaneous four-measurement display in digital and analog.
    Harmonic voltage, current, maximum and minimum values ​​can be checked with simple operations.
  • Test output from the front panel allows you to check wiring after installation.
    Displays the voltage phase sequence and power values ​​for each phase to help identify incorrect wiring.
Type of station or product category Remote device station
Number of stations occupied 1 station
Protocol version 1.10,2.00
External dimensions 110(W)×110(H)×104(D) mm
Mass 0.6 kg
Standard Price Contact us

CSP+File

   Japanese version    0x0349_SQLC-110LU_A_ja.CSPP.zip
