FASTECH Co., Ltd.

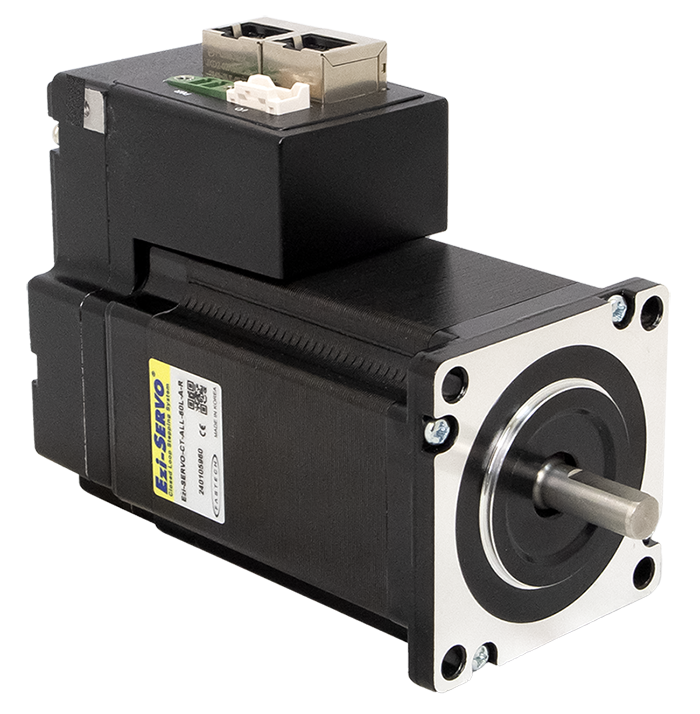

Ezi-SERVO-CT-ALL, Closed-loop stepping motor drive of all-in-one type (motor + drive)

A high-speed high-precision stepping servo drive with a closed-loop control using a high-precision encoder.
Motor and drive are integrated into a single unit, saving space and reducing wiring.
It supports cyclic synchronous position (CSP) mode, profile position (PP) mode, and Homing (HM) mode of CiA402 drive profiles over CC-Link IE TSN.

Feature

  • Functions
    - Tuning Not Required, No Hunting
    - High Resolution Encoder, Fast Response
    - Low Heat Generation, High Torque
  • CiA402 Drive profile
    - Cyclic Synchronous Position Mode (CSP)
    - Profile Position Mode (PP)
    - Homing Mode (HM)
  • Motor
    - Stepping Motor with Encoder
    - All-in-one (Motor + Encoder + Drive)
    - Size: 42mm, 56mm, 60mm
    - Encoder Resolution: 10,000, 20000 P/R
  • CC-Link IE TSN Class B
    - Communication Speed: 1Gbps, 100Mbps
    - Synchronous Comm. (CSP, PP, HM), Asynchronous Comm. (PP, HM)
    - Minimum Cycle Tyme : 250us
Type of station or product category Remote station
Protocol version 2.0
Certification Class B
Communication speed 1Gbps,100Mbps
Safety Communication Function
External dimensions Please see the catalog.
Mass Please see the catalog.
Standard Price Please contact us.

CSP+File

   English version    0x1604_Ezi-SERVO-CT-ALL_1_en.CSPP.zip

Contact

[Korea]
  • [제조사] 파스텍(주)
    경기도 부천시 원미구 평천로 655, 부천테크노파크 401동 1202호
    Tel : 032-234-6300

    [Manufacturer] FASTECH Co., Ltd.
    Rm#303, 402-dong, Bucheon Techno-Park, 655,
    Pyeongcheon-ro Wonmi-gu, Bucheon-si Gyeonggi-do,
    Republic of Korea
    Tel : +82-32-234-6300

    • URL: https://fastech-motions.com/new/eng/main.php
