Products

CC-Link partner product information

CC-Link｜Peripheral devices｜Cables・connectors

Leoni Special Cables GmbH Business Unit Automation & Drives

CC-Link cable L45467-Y19-C15

CC-Link communication cable
LEONI part number: L45467-Y19-C15
Compliant with CC-Link specification 1.10, capable of 10 Mbps operation
Specifications: UL CM, UL PLTC

Feature

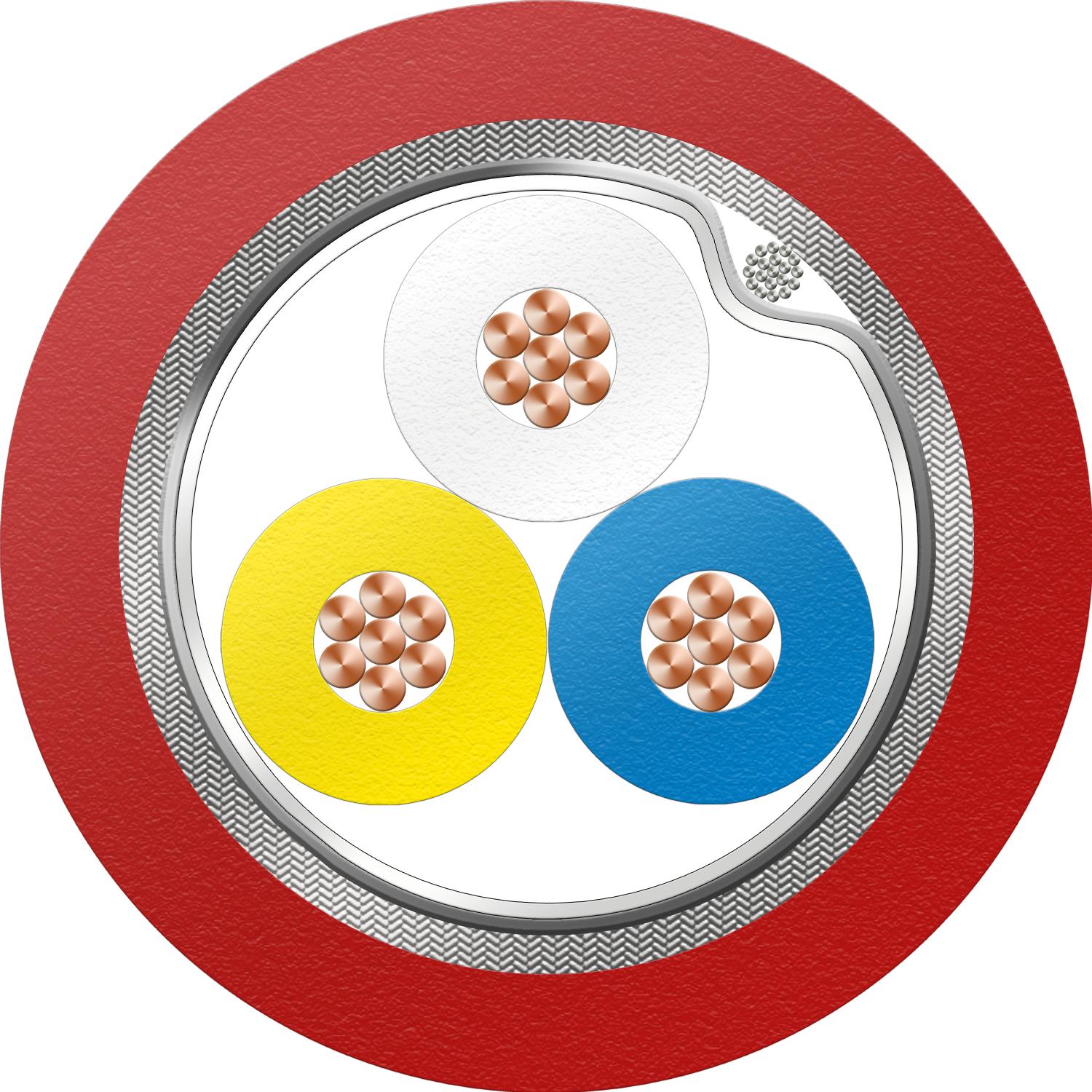

  • Three twisted AWG 20 (7×28) bare copper conductors with foam high density polyethylene (PE) insulation, aluminum foil - polyester Tape (Beldfoil) shield with 100% shield coverage plus tinned copper braid shield with about 80% shield coverage, AWG 22 (19×34) tinned copper drain wire, polyvinylchloride (PVC) outer jacket. Specifications: NEC Type CM; PLTC
Protocol version
External dimensions Outer diameter: 7.7 ± 0.3 mm (0,303 ± 0,012 in)
Mass 76 kg/km (50,9 lb/1000ft)
Standard Price

Contact

[Japan]
  • Company name : LEONI Wire & Cable Solutions Japan K.K.
  • Address : Yashirogaoka 2-1118 Meito-ku, Nagoya Aichiken 465-0051, Japan
  • Mail : automation-drives@leoni.com
    • [China]
  • Company name : LEONI Cable（China）Co., Ltd
  • Address : Room 605, Aetna Mansion, No.107 Zunyi Road, Changning Area, Shanghai, 200051 China
  • Mail : automation-drives@leoni.com
    • [Korea]
  • Company name : LEONI Wire & Cable Solutions Japan K.K.
  • Address : Yashirogaoka 2-1118 Meito-ku, Nagoya Aichiken 465-0051, Japan
  • Mail : automation-drives@leoni.com
    • [Taiwan]
  • Company name : LEONI Wire & Cable Solutions Japan K.K.
  • Address : Yashirogaoka 2-1118 Meito-ku, Nagoya Aichiken 465-0051, Japan
  • Mail : automation-drives@leoni.com
    • [Europe]
  • Company name : LEONI Special Cables GmbH
  • Address : Eschstraße 1, 26169 Friesoythe, Germany
  • Mail : automation-drives@leoni.com
    • [US]
  • Company name : LEONI Engineering Products & Services, Inc.
  • Address : 100 Kay Industrial Drive, Lake Orion, Michigan 48359-1831, United States
  • Mail : automation-drives@leoni.com
    • [India]
  • Company name : LEONI Special Cables GmbH
  • Address : Eschstraße 1, 26169 Friesoythe, Germany
  • Mail : automation-drives@leoni.com

    • URL: https:// www.leoni-factory-automation.com

    Product details: https://www.leoni-factory-automation.com/en/products-and-services/bus-cables/product-finder/?tx_leoniprocat_ajax%5BselectedAttributes%5D%5BIS_Produktkategorie%5D=@IMID:Object:DiskVal50641033015701&cHash=3231aeb8a025432885d09d465f6f660e
