CC-Link partner product information

CC-Link|Slave|Digital I/O

METIS CO., LTD.

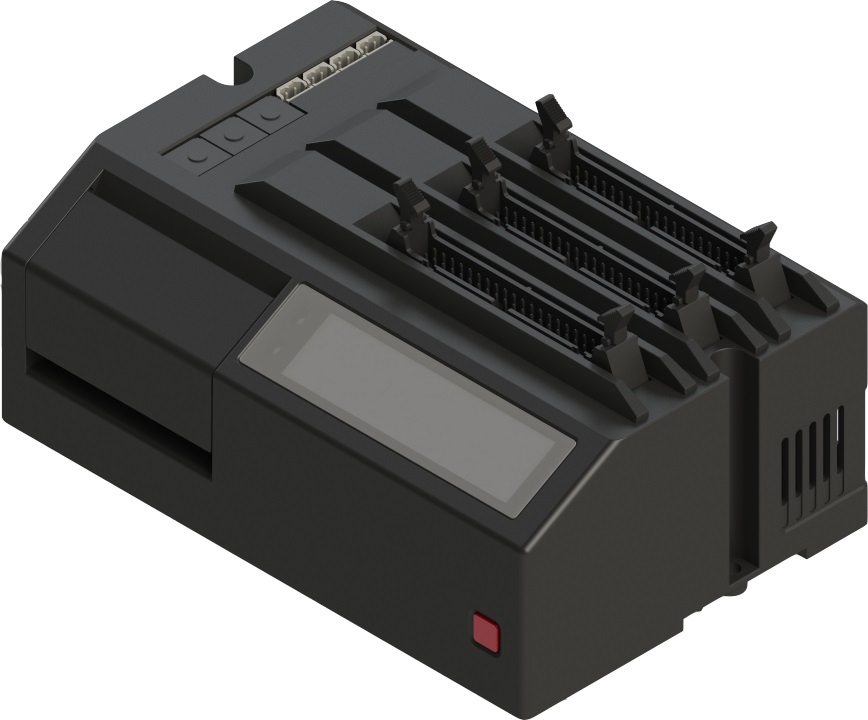

MT99DK1-6432DT

Connection with the master station using CC-Link communication, send external input 64 points and receives 32 points from master station, receive form the sending points to the master station and function of external sending, it can export the output of DC 5V.
It is possible the check IO condition from the wireless device after connection with CC-Link Master.

Feature

  • CC-Link Ver : 1.10
    Device type : Remote Device
    Number of occupied station : 2
    INPUT : 64
    OUTPUT : 32
    DA Output port : 5V 4 channels.
    Built-in Bluetooth
    LCD checking the status of the Remote IO
Station type REMOTE DEVICE
Number of stations occupied 2occupied
CC-Link version Ver 1.10
External dimensions 170 x 100 x 58 (mm)
Mass 0.5kg
Standard Price $ 727 ($1 / ₩1,100)
