For a speedy development of a CC-Link Family compatible product.
Mitsubishi Electric is ready to assist you from consulting to the provision of product development tools.
Making your products compatible with CC-Link Family, an open field network originating from Japan –––––
That will not only ensure the level of system flexibility distinctively characteristic of multi-vendor products but also provide you with the opportunity to boost the competitiveness of your products to the global level once and for all.
With various certifications, including International Organization for Standardization ISO 15745-5*1, IEC 61158 and 61784*2, SEMI*3, Chinese National Standards GB*4, Korean Industrial Standards KS*5, and Japanese Industrial Standards JIS*6, CC-Link has lived up to its name as a global standard. To ensure quick and certain development of CC-Link Family compatible products, such as new generation CC-Link IE Controller Network and CC-Link IE Field Network, Mitsubishi Electric will support you in every phase of development,including the provision of development tools.
- *1 Application Integration Framework
- *2 Industrial Field bus protocol standard
- *3 SEMI E54.12 E54.23-0513
- *4 GB/T 19760 20299.4
- *5 KSB ISO 15745-5
- *6 JIS TR B0031
CC-Link IE Control
Control Station, Nomal Station
Driver Development

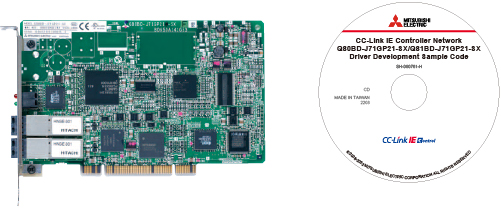

Drivers for various operating systems can be developed for use of the Mitsubishi Electric PC interface board (Q80BD-J71GP21-SX).
CC-Link IE Field
Master Station, Local Station
Driver Development

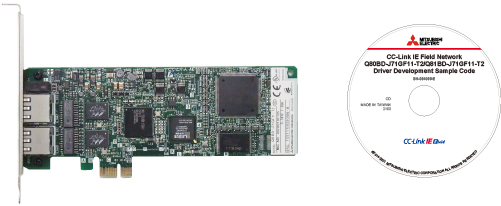

Drivers for various operating systems can be developed for use of the Mitsubishi Electric PC interface board
(Q80BD-J71GF11-T2/Q81BD-J71GF11-T2).
Intelligent Device Station, Remote Device Station

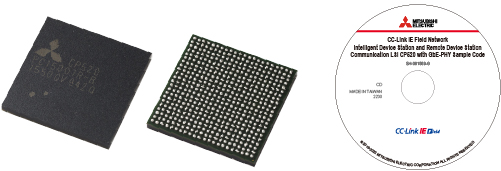

Communication LSI CP520 with GbE-PHY
This LSI integrates the CC-Link IE Field Network communication ASIC, MPU and GbE-PHY. CP520 allows you to develop devices that perform cyclic transmission and transient transmission without concern about protocol. It is applicable also to the motion function.
CP520 is controlled with software

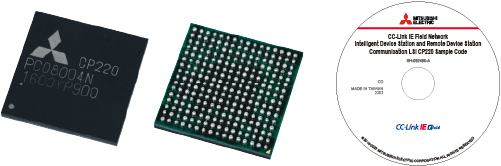

Dedicated communication LSI CP220*
CP220 is a communication LSI that allows you to develop devices that perform cyclic transmission and transient transmission without concern about protocol. It is applicable also to the motion function.
CP220 is controlled with software.
- *CP220 is designed for development of intelligent device stations.
CC-Link
Master, Local and Intelligent Device Station
Built-in interface board Q50BD-CCV2

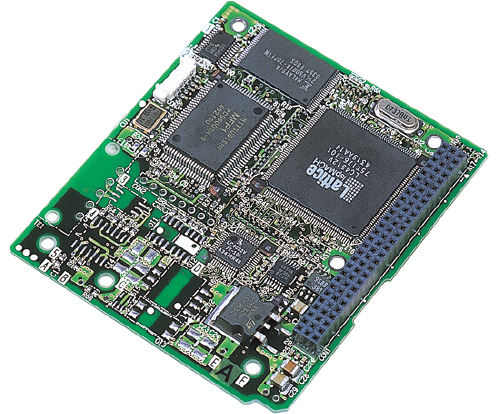

In this method, stations are developed using a built-in interface board. The CCLink master station, local station and intelligent device station functions are realized by mounting the interface board on a user circuit board.
Master Station, Local Station
Driver Development

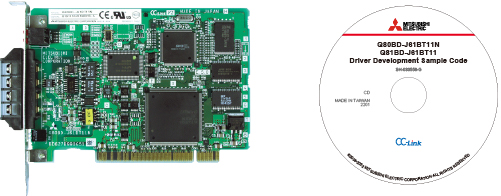

Drivers for various operating systems can be developed for use of the Mitsubishi Electric PC interface board (Q80BD-J61BT11N).
Remote Device Station

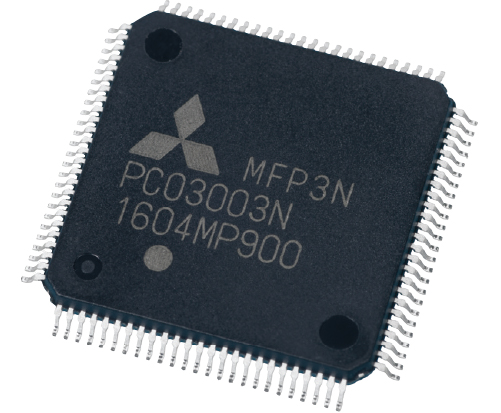

Dedicated communication LSI MFP3N
MFP3N is a communication LSI that allows you to develop devices that handle bit data and word data without concern about protocol. MFP3N is controlled with software. Support of both CC-Link Ver. 1 and Ver. 2 is possible by changing the software.

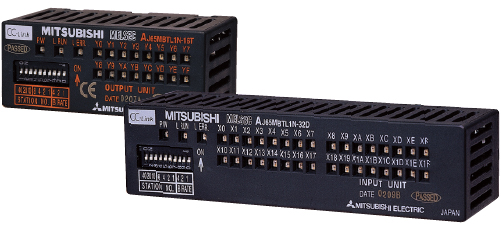

Remote I/O Station

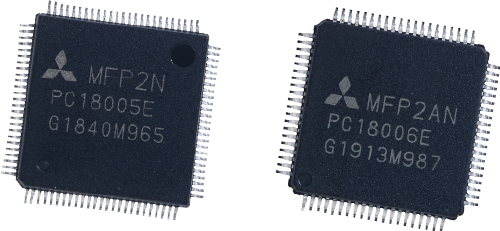

Dedicated communication LSI MFP2N/MFP2AN
MFP2N and MFP2AN are communication LSIs that allow you to develop devices that handle bit data without concern about protocol. The two types are provided for different package sizes (number of pins) and I/O point quantity.
Embedded I/O Adapter
This small-sized Embedded adapter allows you to develop devices that handle bit data without concern about protocol. The adapter can be mounted directly on the circuit board you developed, and allows expansion of the number of I/O points through cascade connection. (A maximum of two adapters can be mounted on a single circuit.)
Technical support for development of CC-Link Family compatible products
Backup and support
A variety of CC-Link Family-related technical documents are available, for a fee, and technical support is provided via member-only e-mail.
Open System Center
Your inquiries are accepted 9:00 to 12:00 and 13:00 to 17:00
(every day of the week - except for Saturdays, Sundays and our company holidays)
E-mail：
For technical support
Mitsubishi Electric Corporation Open System Center
E-mail：
