Network technology

Puzzle Cube-Solving Robot

Mitsubishi Electric

Using advanced motion control with time synchronization accuracy within ±1μs, the puzzle cube was solved in just 0.305 seconds.

2024-10

Puzzle Cube-Solving Robot

System Configuration

TOKUFASTbot can perform a 90º rotation time of 0.009 second thanks to its rotation mechanism, which is built with Mitsubishi Electric’s compact, high-power, signal-responsive servomotors and a color-recognition algorithm developed with proprietary AI technology.
From image capture by vision sensor to procedure search by AI and high-speed rotation by servo about 15 times, the puzzle is completed in 0.305 seconds.

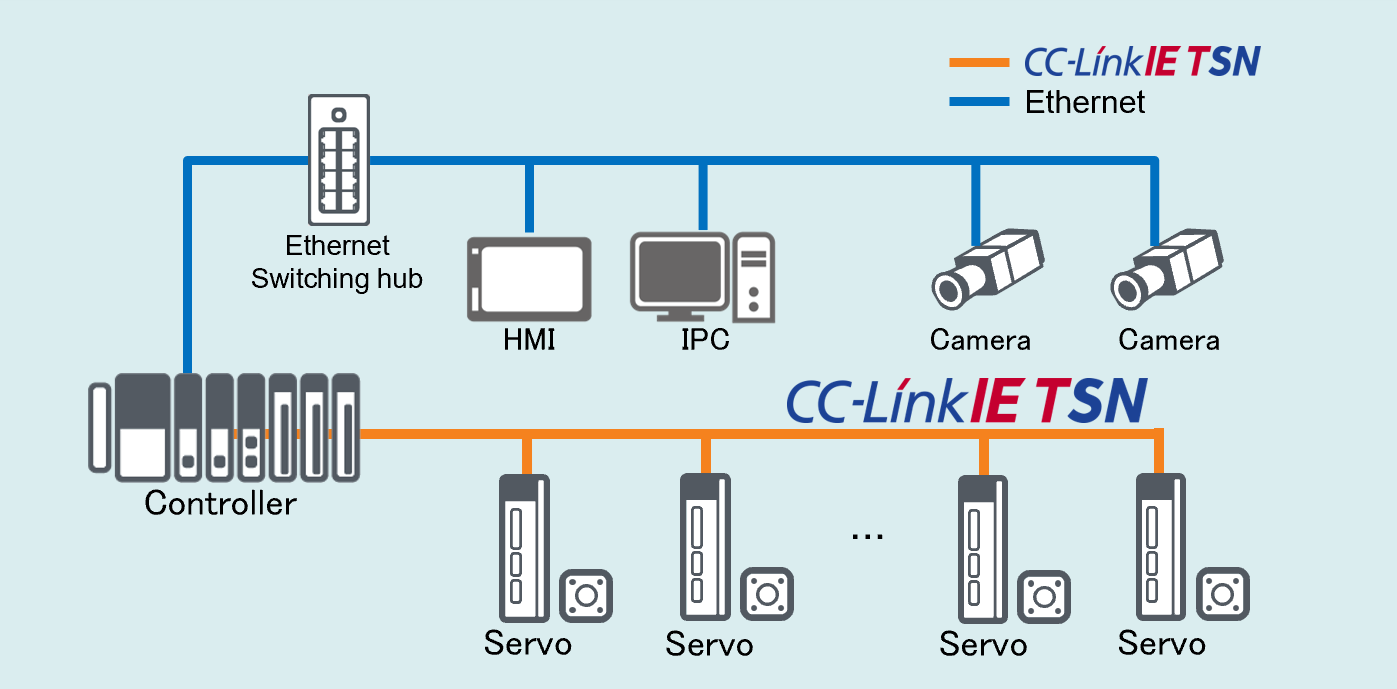

System Configuration

Key Points

  • 1.Realizes fast and high accuracy synchronization control with time synchronization accuracy within ±1μs.
