Network technology

Cartesian Wrapping Machine

Marunaka Tekkosho

Multi-axis motion control and real-time torque data collection for improved lapping quality

2024-10

Cartesian Wrapping Machine

System Configuration

A wrapping machine that attaches sheets to building materials. Based on the company's development concept "CRAFTNICS" (Craftmanship x Mechatronics), the craftsmanship is digitized using CC-Link IE TSN and the traditional manual set change is automated achieving both productivity improvement and quality improvement. A large device that uses approximately 100 axes of servos.

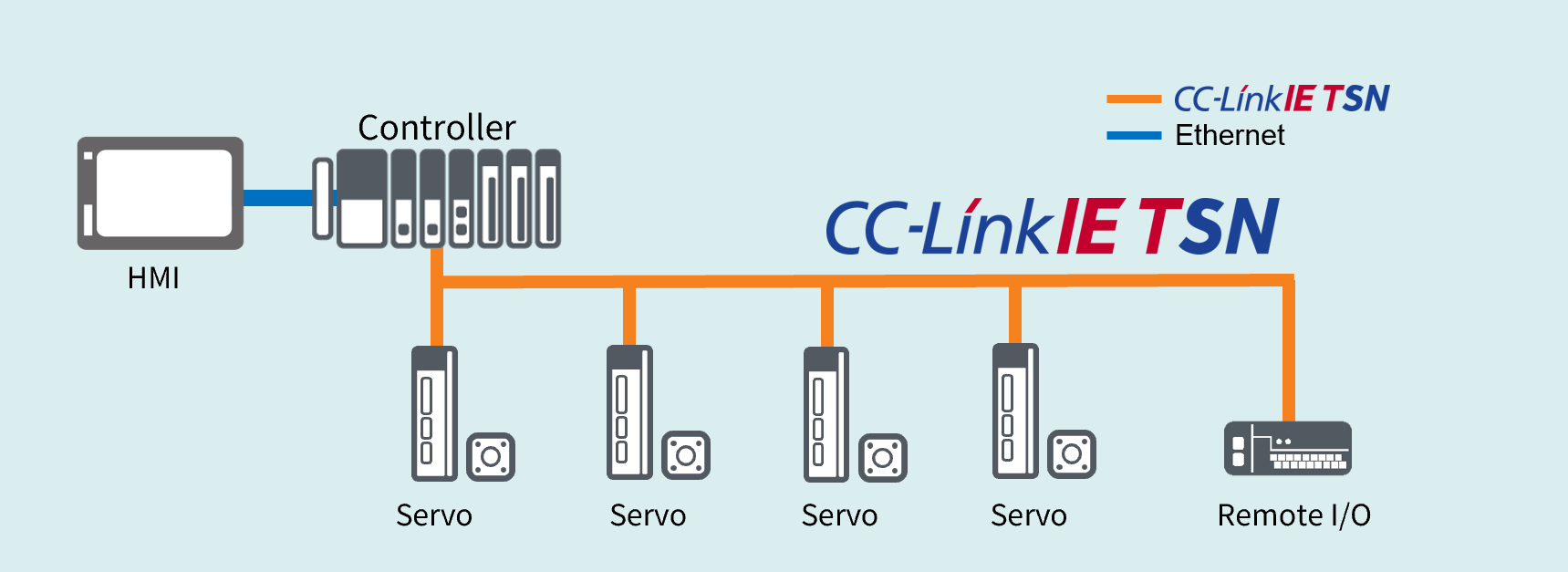

System Configuration

Key Points

  • 1.Multi-axis motion control performance.
  • 2.It can collect torque data of approximately 100 axes of servos in real time, contributing to improving the quality of wrapping.
