Lithium-ion Battery Manufacturing Machine (Stacking Machine)

Use Case

Large-volume data from a vision sensor can be processed while communicating with an industrial PC on the same network without affecting motion control

Lithium-ion Battery Manufacturing Machine (Stacking Machine)

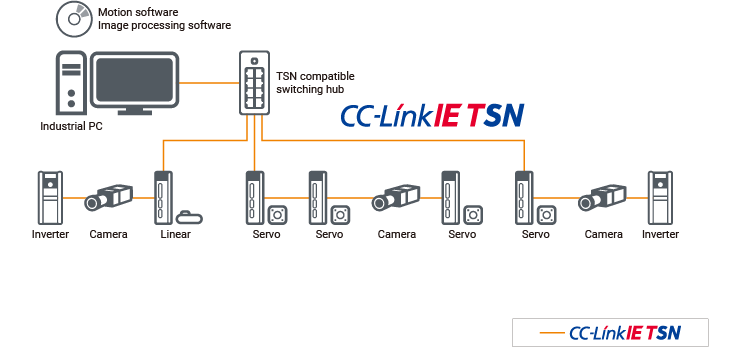

System Configuration

The adoption of CC-Link IE TSN allows different communication cycles to be mixed on one network, improving not only the flexibility of system configuration but also machine performance and product quality.

System Configuration

Key Points

  • 1.Large-volume data such as image data from vision sensors can be communicated over the same line to an industrial PC for collection and image processing without affecting motion control
  • 2.Different communication cycles can be operated while maintaining high-speed, high-accuracy motion control, not only saving wiring but also maximizing productivity
