Lithium-ion Battery Production Line

Use Case

Improve productivity by optimum control when mixing equipment with different communication cycles

Lithium-ion Battery Production Line

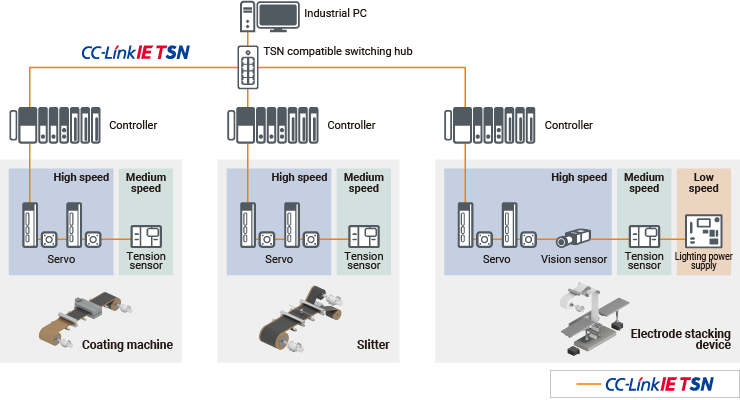

System Configuration

The adoption of CC-Link IE TSN enables the mixed communication cycles while ensuring the high-accuracy multi-axes synchronization performance required for Roll to Roll control in the lithium-ion battery manufacturing process.

System Configuration

Key Points

  • 1.Time sharing method enables high-accuracy multi-axis synchronized control even for large systems with 256 axes
  • 2.Maximize productivity by using optimum communication cycles based on device performance, such as servos that require high-speed control and tension sensors and lighting power supplies that operate at lower communication speeds
