Network technology

Automotive(Paint Shop)

Use Case

Both general and safety communications can be mixed on one network. And even when mixed with IP communication, deterministic performance of the control communication is maintained.

Automotive(Paint Shop)

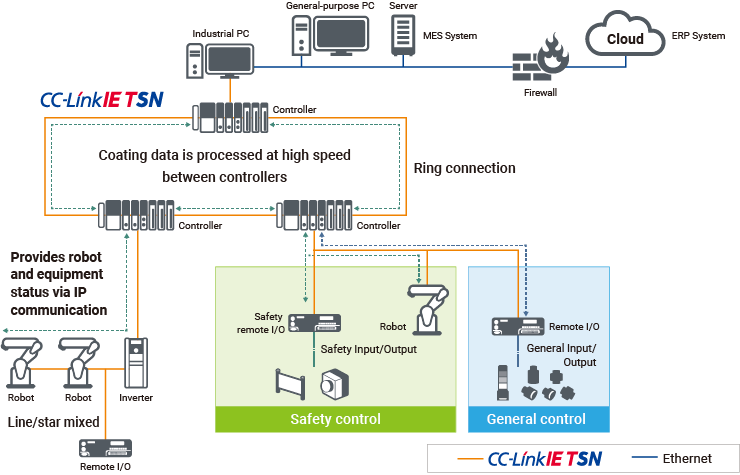

System Configuration

CC-Link IE TSN allows the controller to collect and analyze large-volume data for tracability and monitoring required in the automotive painting process at high speed while controlling equipment. It also allows variable-mix variable-volume production by transmitting various recipe data to the equipment in real time.

System Configuration

Key Points

  • 1.Intergreating safety communication on one network
  • 2.Flexible cabling supports line/star/ring topology
  • 3.Deterministic performance is maintained for control communication even when mixes with IP communication on the same network, all owing communication from large-volume data between controllers to data for equipment monitoring.
