Belden Hirschmann Industries（Suzhou）Ltd.

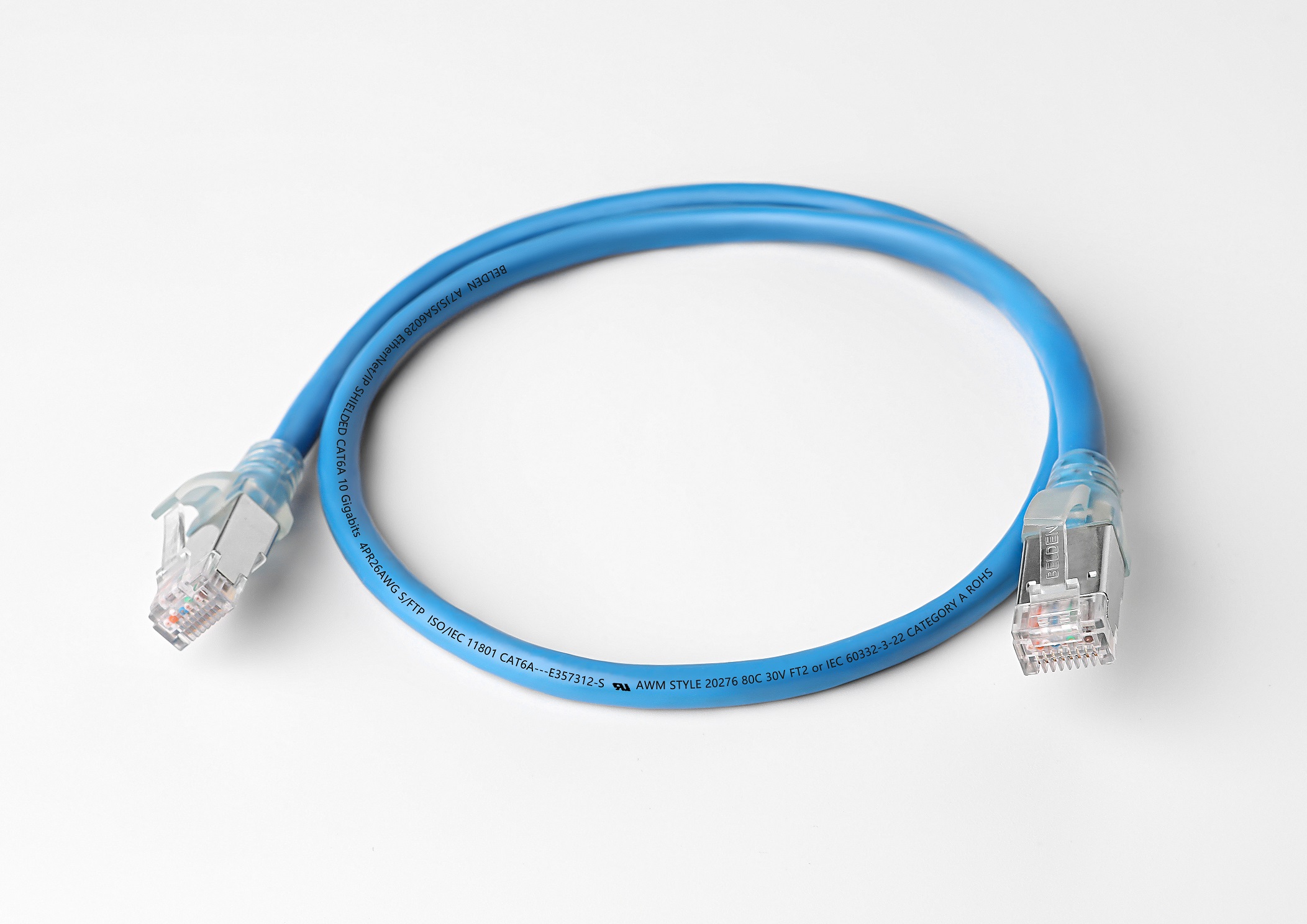

A5JSJSA6039-CC-Link IE Field CAT5e 1000 Mbps Double-Ended Cord set
CC-Link IE Field CAT5e 1000 Mbps Double-Ended Cord set : male straight transparent RJ45 to male straight transparent RJ45, shielded, TPE cable,4 Pairs.
特長
- Cable Design : 4P 26AWG Cat 5e S/FTP TPE Patch Cable
- Conductor Material : Stranded Bare Copper
- Insulation Material : Polyolefin
- No. of Cores/Pairs (cable) : 4 pairs
- Shielding Type : Each pair with individual foil + overall braid shield
- Shielding Material : Copper alloy
- Outer Jacket Material : TPE
- Overall Diameter (mm) : Nom. 6.2 mm
- Operational Temperature : -25°C to + 70°C
- Oil resistance : Yes
- Flame Retardant : FT2, IEC60332-1, IEC 60332-3A
- Maximum operating voltage (V) : 30 V
- RoHS Compliant : Yes
- For Connector :
Connector Type : RJ45 Male
Data Transmission : 1000 Mbps
Connector Pins : 8
Protection Degree / IP Rating : IP20
Shielding : Shielded
Plug Housing Material : PC - Polycarbonate, UL94-V0 rated
Attachment Plating : Gold plating in contact area
| 局種別または製品の種類 | |
|---|---|
| 伝送可能距離 | |
| ケーブル外径/外形寸法 | |
| 質量 | |
| 標準価格 |
