Semiconductor Process Equipment
（Use Case）
Software implementation enables the reduction of design effort by utilizing existing design assets
2024年 9月

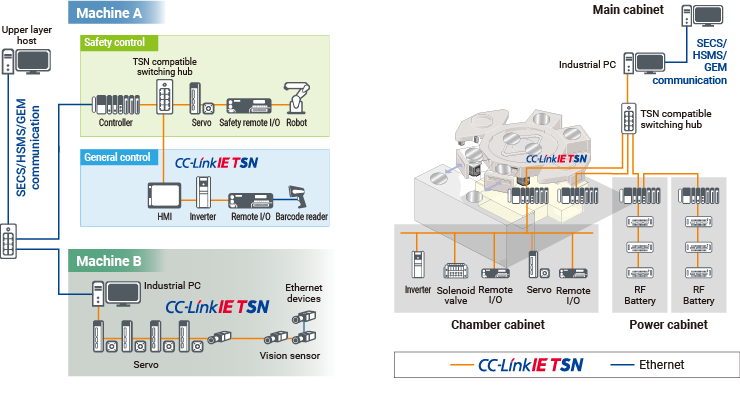

System Configuration
Without changing the existing hardware, it is possible to implement a CC-Link IE TSN manager station in an industrial PC, which is the mainstream main controller for semiconductor equipment, using software. In addition, by adopting CC-Link IE TSN, it is possible to communicate large volumes of data for recipe and traceability at high speed without affecting control communication.
Key Points
- 1.Provides rapid communications to handle large amounts of recipe and traceability data
- 2.Enables mixing with Ethernet communications such as SECS, HSMS, GEM, etc. without affecting the deterministic performance of control communications
- 3.Ethernet devices communicate directly with the host on the upper layer
- 4.Use current design assets by implementing a software protocol stack on top of the main controller (manager Station) IPC
