PORT´s CC-Link IE TSN Stack products can be obtained in different versions. Whether master or remote station (software stack) - large quantities or small quantities - PORT offers the right solution for every user of CC-Link IE TSN technology.
Developable Stations / Certification Classes
| Development tool | Station type | Certification class | Product name |
|---|---|---|---|
| Software Development Kit (SDK) | Master station | Class B* *Class B available if Hardware supports TSN |
CC-Link IE TSN Master SDK |
Development Method
The application decides what you need - PORT offers the right CC-Link IE TSN Master solution
for your need - Semiconductor independently.
- SDK uses GOAL, port’s Industry 4.0 platform.
- Platform is easily portable to customer’s hardware and operating system.
- Master station sample platform：
- NXP LS1028ARDB
NXP i.MX RT1170 (to be certified soon) Class B & A controllable
- Port's Design Tool allows easy creation of application data objects (Link Devices or CANopen objects), Stack configurations and Device Description files.
Features and benefits of development methods
- Allows implementation of Management Master station and Control Master station.
- Management Master Station: Controls other slaves and manages the network (only one station per network).
- Control Master Station: controls other slaves and masters (one or multiple CM stations per network).
- Supports time synchronization via IEEE 802.1AS and IEEE 1588v2 (both E2E and P2P delay mechanisms are supported).
- Supports hardware implementation of TDMA-scheduling (IEEE 802.1Qbv).
- Supports control communication (cyclic communication) with Device stations and other Master stations.
- Supports Transient Transmissions (acyclic communication) with
other stations.
- Reserved transient Transmission: acyclic communication within timeslot for cyclic communication.
- Non-reserved Transient Transmission: acyclic communication within timeslot for standard Ethernet traffic.
- Supports SLMP (Seamless Message Protocol) for acyclic data transfer.
- Support of multiple cycle times.
The Master can perform control communication with multiple slaves with different cycle times. All cycle times must be a multiple of the smallest cycle time. - Cyclic Start/Stop: stop and restart cyclic transmission with other stations.
- Certification Class B is possible.
Developable Stations / Certification Classes
| Development tool | Station type | Certification class | Product name |
|---|---|---|---|
| Software Development Kit (SDK) | Remote station | Class B/A | CC-Link IE TSN Remote SDK Coming soon |
Development Method
The application decides what you need - PORT offers the right CC-Link IE TSN Remote solution for your need - Semiconductor independently.
- SDK uses GOAL, port’s Industry 4.0 platform.
- Remote Station sample platform is the NXP LS1028ARDB, i.MX RT1170.
- Port's Design Tool allows easy creation of Application data objects (Link Devices or CANopen objects), Stack configurations and Device Description files.
Features and benefits of development methods
- Allows implementation of Remote Device Station.
- Supports time synchronization via IEEE 802.1AS and IEEE 1588v2 (both E2E and P2P delay mechanisms are
- supported).
- Supports hardware implementation of TDMA-scheduling (IEEE 802.1Qbv).
- Supports control communication (cyclic communication) with Master stations.
- Supports Transient Transmissions (acyclic communication) with other stations.
- Reserved transient Transmission: acyclic communication within timeslot for cyclic communication.
- Non-reserved Transient Transmission: acyclic communication within timeslot for standard Ethernet traffic.
-
Supports SLMP (Seamless Message Protocol) for acyclic data transfer.

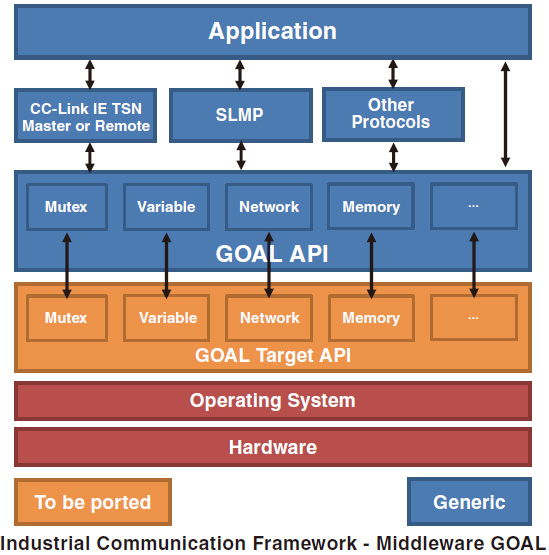

*Please refer to the diagram on the Top.
