Development

HMS Industrial Networks

Anybus solutions offer you a sure way to easily succeed in the development of CC-Link/CC-Link IE Field equipment in a short period of time.

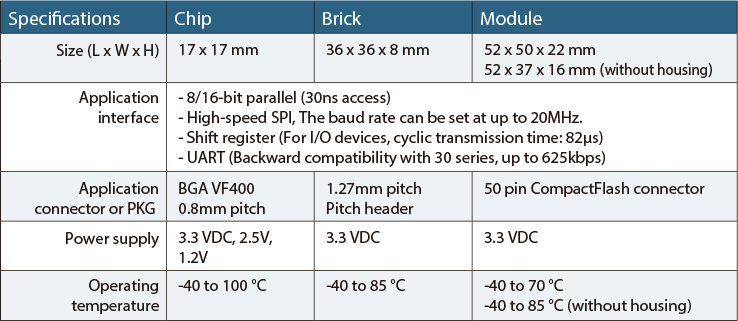

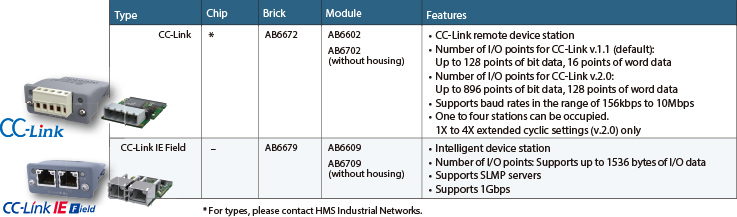

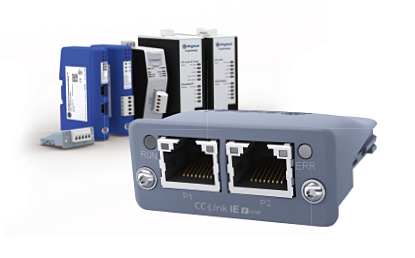

Anybus CompactCom 40 - CC-Link / CC-Link IE Field

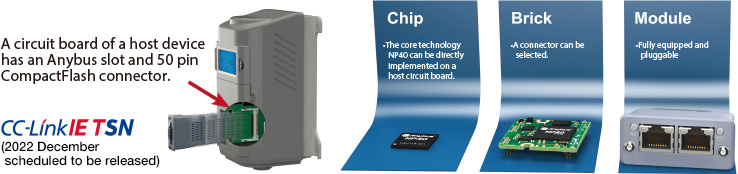

squareCommunication module provided in three built-in forms selectable according to hardware or specifications

With Anybus CompactCom’s three built-in forms of chip, brick, or module, choosing the optimum form to introduce is easy.
No matter which form is adopted, development man-hour and investment allow for the development of CC-Link / CC-Link IE Field* (slave) compatible devices, at a minimum, in order to ensure software compatibility.
Development using the Anybus CompactCom provides the hardware compatibility and the developed hardware can be easily used on other networks.

*No chip is available for C40 CC-Link IE Field/TSN.

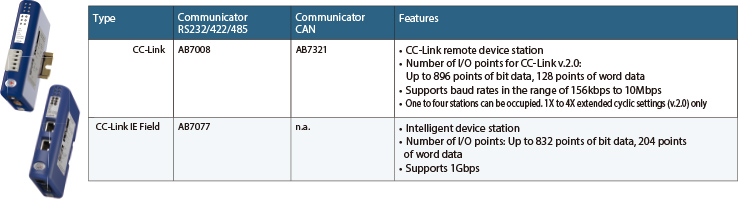

Anybus Communicator RS232/422/485, CAN - CC-Link, CC-Link IE Field

squareProtocol converter that connects serial devices or CAN devices to CC-Link / CC-Link IE Field

Anybus Communicator RS232/422/485 and Anybus Communicator CAN are high-performance externally mounted serial converters that allow CC-Link / CC-Link IE Field support using the existing RS232/422/485 or CAN serial interface of your equipment.

Without taking up any space inside the control cabinet, this extremely compact product requires no program changes on the equipment side and can be easily mounted on a DIN standard rail.

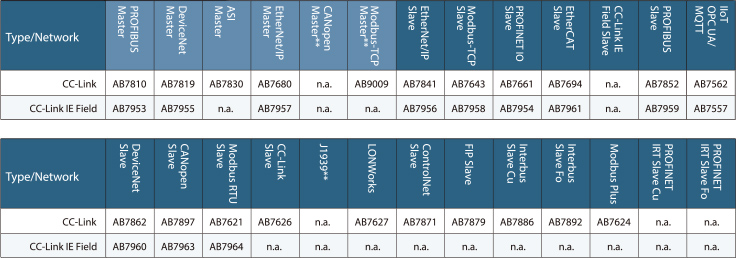

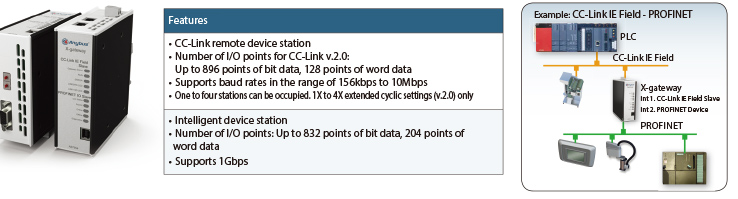

Anybus X-gateway - CC-Link / CC-Link IE Field

squareNetwork converter that connects CC-Link / CC-Link IE Field to other industrial networks and IIoT protocol

Anybus Communicator X-gateway facilitates I/O data transfers between varying types of networks and PLC systems, allowing for consistent communication of information throughout the entire plant. Connecting CC-Link and CC-Link IE Field to various types of industrial networks is also possible.

*Products which support X-gateway CANopen Master, Modbus-TCP Master, and J1939 differ in shape.
**Standard Anybus products do not support the combinations marked with “n.a.”. For details, please contact HMS Industrial Networks.
