CC-Link Safety
CC-Link Safety is a safety field network of CC-Link for realizing a safe system architecture.
“CC-Link Safety” has high degree of compatibility with CC-Link. It is possible to utilize existing assets and equipment such as CC-Link cable or CC-Link remote stations.

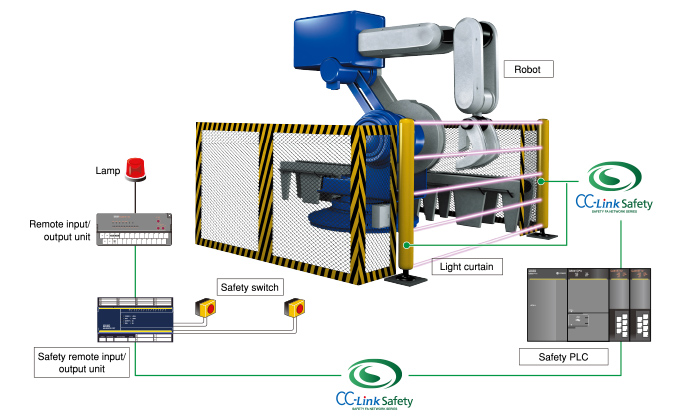

CC-Link Safety Configuration Example (Automobile Welding Line)
CC-Link Safety Features
Safety communication speeds of 10 Mbps.
With the same high-speed communication as CC-Link, we can establish a safety system that provides high performance.
Accurate detection of communication errors
Our safety communication design can detect every communication error or malfunction such as an unexpected delay of communication or erroneous data and then bring the system to a failsafe shutdown.
Unitize original assets and equipment for the safety network.
Existing CC-Link certified cables can be use for CC-Link Safety. In addition, original CC-Link compatible devices can reside on the same network that incorporates CC-Link Safety devices.
Maintain central network error and failure information.
Safety manager station maintains error and failure histories of the safety remote stations. This function enhances in troubleshooting.
