Network technology

System Applications

Building automation system

Factory Automation and Building Automation: CC-Link Applications across various fields

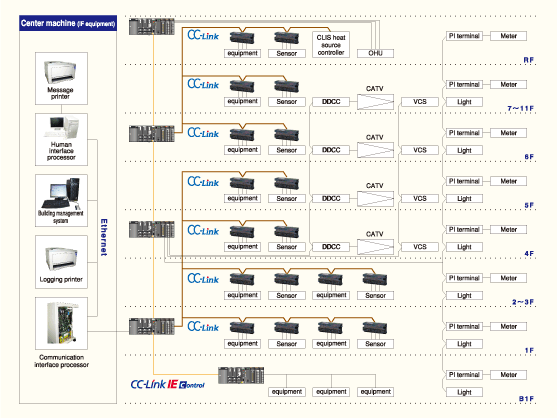

In this system, the process automation system is controlled by a PLC. Sensors and other equipment are installed at each floor and are connected to a PLC controller by the CC-Link system. The heat source controller of the Crystal Liquid Ice heat storage System (CLIS) is directly connected to a PLC controller. CLIS is a part of the heat storage system reducing substantial carbon dioxide and the total running/operating costs for the air conditioning subsystem. The Vapor Cycle Air Conditioning System (VCS) is directly connected to a PLC as well.
CC-Link makes it easy to install equipment and devices and to wire the entire building automation system.
