Network technology

CC-Link/LT

CC-Link/LT is designed for implementation in sensors and actuators and other reduced I/O applications. It simplifies and minimizes wiring for field devices and within control panels.

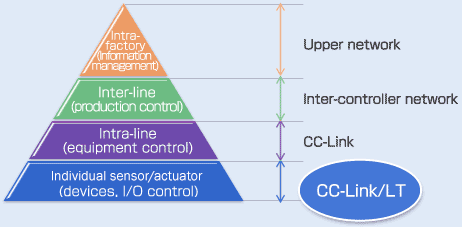

CC-Link/LT Positioning

CC-Link/LT Positioning

Market Needs

  • More improvement wiring, maintaining same high-speed performance as CC-Link
  • Small points dispersion
  • Size of I/O is smaller
  • Open network the level of reducing wiring network and sensor network

arrowCC-Link / LT

Open Network Technology

  • CC-Link/LT utilizes the same open network technology as CC-Link.
  • You can make a flexible choice of the optimum devices from multiple vendors to improve the flexibility of system construction.

Needs No Parameter Setting

Device stations have no need for setting network transmission speed. Only Manager stations require speed settings.

Minimize the Number of Unused I/O Addresses

CC-Link/LT reduces the number of unused network addresses. By selecting the most appropriate mode of either 4,8, or 16 I/O points, the most efficient use of network addresses can be attained.

Excellent Noise Immunity

Excellent noise immunity results from employing the same technology used in the field-tested, well-known CC-Link field network.

Easy and efficient network connection

  • The popular CC-Link "one-touch" connector enables a fast, reliable connection to the communication cable without the need for special tools. It is extremely easy to add additional network units.
  • A specially-designed flat network cable carries both signal and power wiring. This cable reduces the possibility of wiring errors, the time for exchanging units and wiring costs.

Easy and Efficient Network Connectio

Simple Programming

No special network commands or addresses are required. CC-Link/LT devices can be treated as "local" I/O.

High-speed Response

CC-Link/LT can quickly update all I/O points in as little as 1.2 ms at a network speed of 2.5 Mbps. 3 rates of communication speeds can be selected (2.5 Mbps/625 kbps/156 kbps), according to the cable distance required for the application.

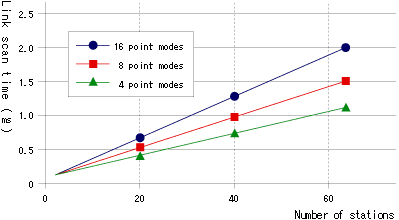

CC-Link/LT link scan time (at 2.5 Mbps)

CC-Link/LT link scan time (at 2.5 Mbps)
