Network technology

CC-Link IE Field Network Basic

Using Ethernet technology which can be easily applied to small-scale equipment not requiring high-speed control and is easy to use and develop. Realizing cyclic communication with software implementation only.

Features

(1) Realize Cyclic Communication with Software Implementation Only

Software-based cyclic communication stack that does not require a dedicated ASIC, enabling easy network integration and reducing implementation costs for device vendors.

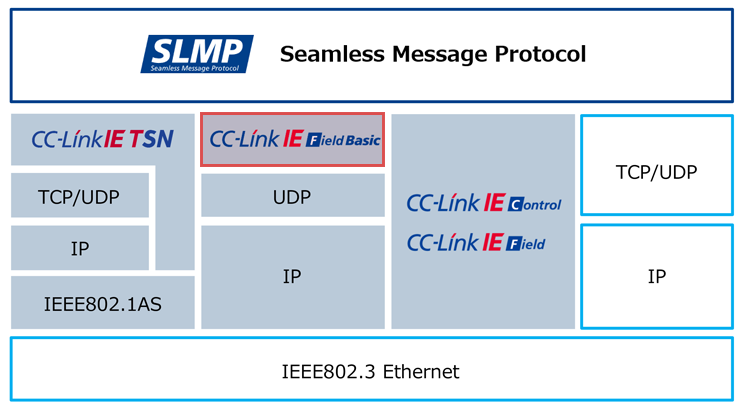

Protocol structure

(2) Combining with TCP/IP Communications

The network operates on the standard Ethernet protocol stack, which can be used together with TCP/IP communications. This feature allows CC-Link IE Field Network Basic compatible products and Ethernet compatible products to be connected on the same line, enabling a highly-flexible and low cost system.

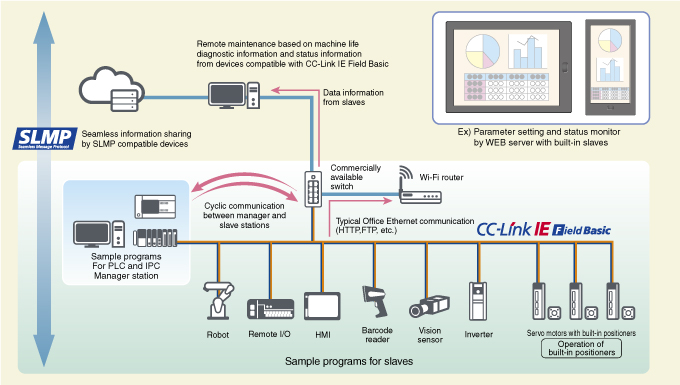

System structure figure

(3) Development support

Sample code is available for developing master and remote stations for CC-Link IE Field Network Basic compatible products. Please use this sample code to realize efficient development. CLPA members can download the sample code free of charge from CLPA Global Website

Click here to download sample code

Click here to see more on CC-Link IE Field Network Basic
