Network technology

CC-Link IE Controller Network

Designed to ensure a highly reliable network through the use of full duplex fiber optic transmission paths,delivering high-speed, high-capacity distributed control.
It’s the backbone network that provides assured control of each field network.

High Speed & Reliability by Redundant Fiber Optic Loop Technology

  • By adoption of redundant loop topology, each station continues communication by looping back upon detection of a broken cable or station error.
  • This integrated redundancy is provided without additional equipment and without increasing network cost.

High-speed & Reliability by Redundant Fiber Optic Loop Technology

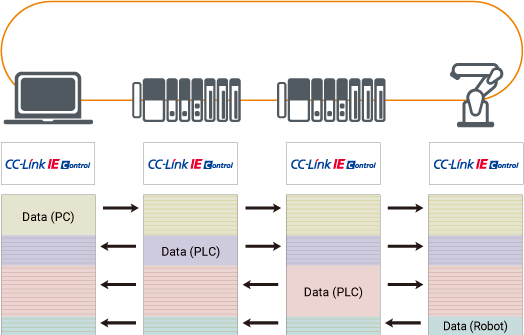

Network Shared Memory for Cyclic Communication with Ultra High Speed & Ultra Large Capacity

  • To achieve stable communication independent of transmission delay, CC-Link IE Controller Network adopts a token passing protocol for data transmission control.
  • Each controller passes data to the network shared memory only when it has the token, ensuring fully.

Network Shared Memory for Cyclic Communication with Ultra High-speed & Ultra Large Capacity

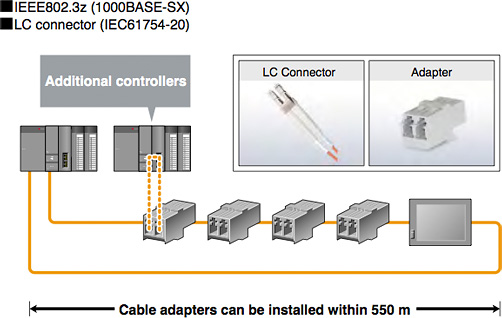

Adoption of standard Ethernet cables, connectors and adapters

  • Easy and world-wide purchasing of standard Ethernet cabling parts by using Ethernet technology.
  • By using cable adapters, wiring debugging and installation can be started even if all the equipment in the line has not been fully installed.

Adoption of Ethernet Technology
