CC-Link partner product information

CC-Link IE Field Basic｜Remote station｜Load cell・Indicator

LAUMAS ELETTRONICA SRL

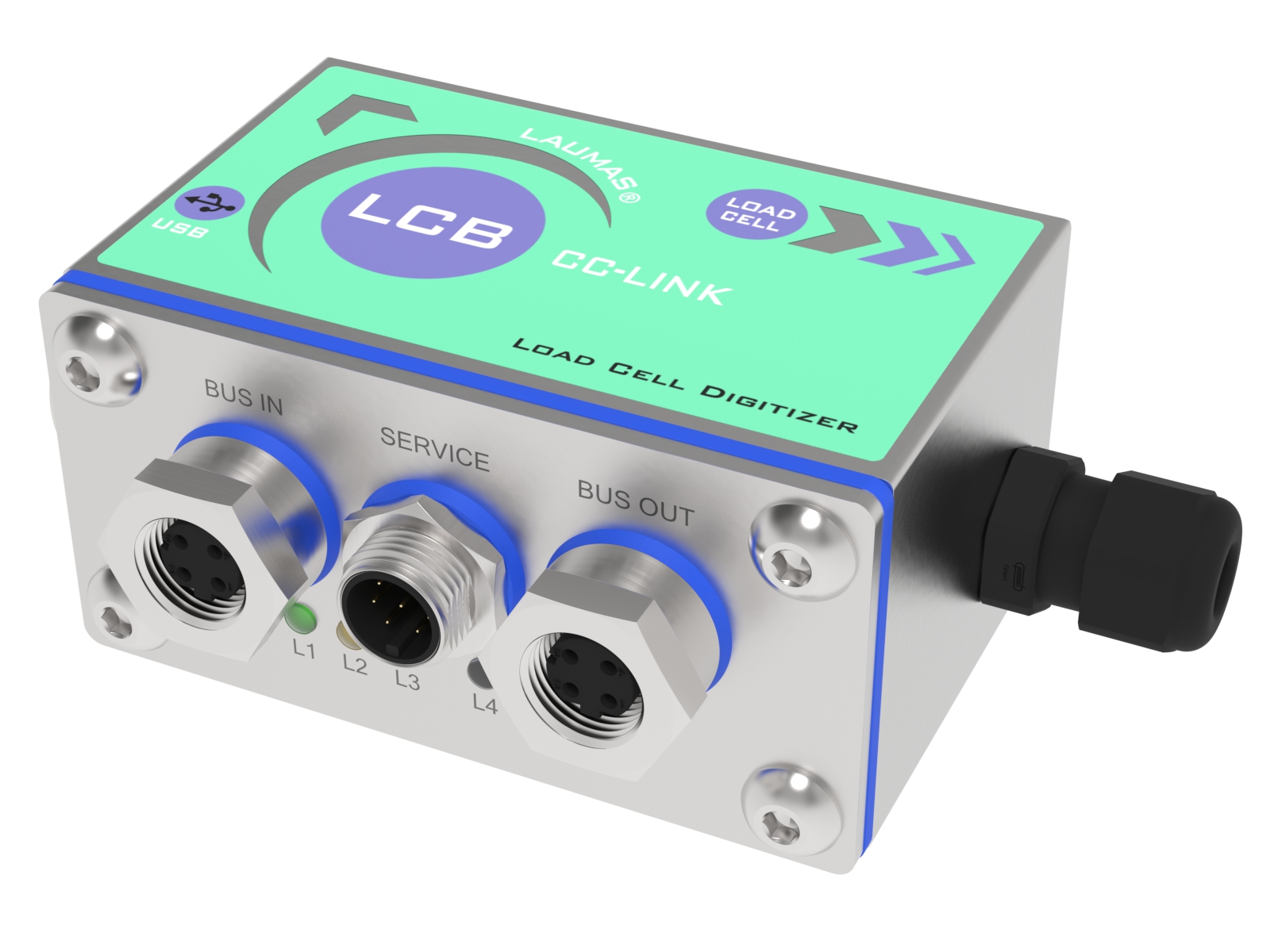

LCB Weight Transmitter

-Digitizer/Weight Trasmitter for load cells conceived with an eye on IoT (Internet of Things) (Internet of Things).
LCB Digitizer transforms an analog load cell (output mV/V) into digital and can also be used on existing load cells or strain gauge sensors. Designed for an assembly/wiring integral with the load cell body.
Possibility to perform a full configuration via PC software Instrument Manager or via fieldbus interface. A base progam and a single product, batching program are available.

Feature

  • Basic weighing process control function
    Batching load process control function
    Multipoint calibration
    Calibration via characterization values of the loadcell
    High performance digital filter
    Detailed diagnostic of the connected load cell
    Configurable stable weight detectin algorithm
    PC configuration software via micro USB port
    2 logic inputs (PNP), 3 relay outputs
    Mounting: wired or integral to the load cell body via standard
    ¼ GAS fitting (specific adapters for different threads are supplied
    on request)
    Sigma Delta A/D converter, 24bit (16000000 points) 4.8 kHz
    DC12-24V Power supply
Type of station or product category Remote station
Number of stations occupied 1
Protocol version 1
External dimensions 90x40x107 mm
Mass Approx. 500g
Standard Price Contact for more information

CSP+File

   English version    0x1884_LCBCCIEF_0x0001_en.CSPP.zip
