Kistler Lorch GmbH

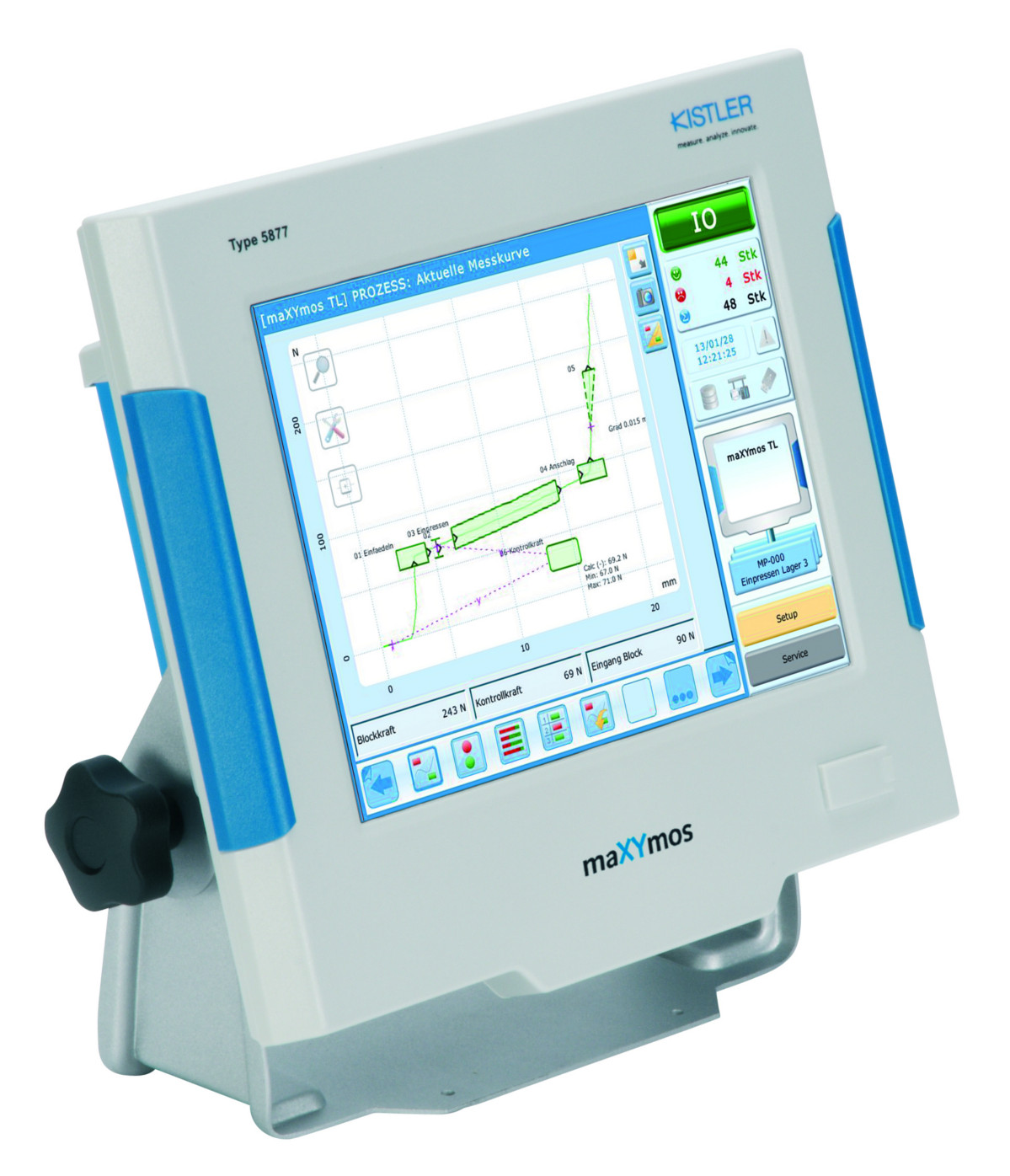

maXYmos TL 5877A

The maXYmos TL captures, analyzes and evaluates the XY curves of two measurands that are required to maintain a precisely pre-determined relationship to each other. XY measurements of this kind can be used to monitor the quality of an individual manufacturing step, a series of steps in component assembly or an entire product.

特長

  • Y=f(X), Y=f(X,t), Y=f(t), X=f(t) measurement functions
  • High-speed evaluation, measuring up to 20 parts per second
  • Ethernet TCP/IP for measurement data, remote maintenance and channel cascading
  • Digital I/O (24 V) for control and results
  • 2 switch signals for X and Y threshold
  • Sensor for X channel: Potientometer, ±10 V, LVDT, incremental, SSI
  • Sensor for Y channel: strain gage, ±10 V or piezoelectric
  • Multiple data export formats, e.g. Q-DAS, XML, CSV, PDF
  • Powerful NOK diagnostics, process-value trend analysis etc.
  • optional: Display module (DIM) with 10.4“ color touch screen and front-facing USB port
局種別 Remote device station
占有局数 4 stations
プロトコルバージョン V. 2.00
外形寸法 -
質量 -
標準価格 Offers on request
